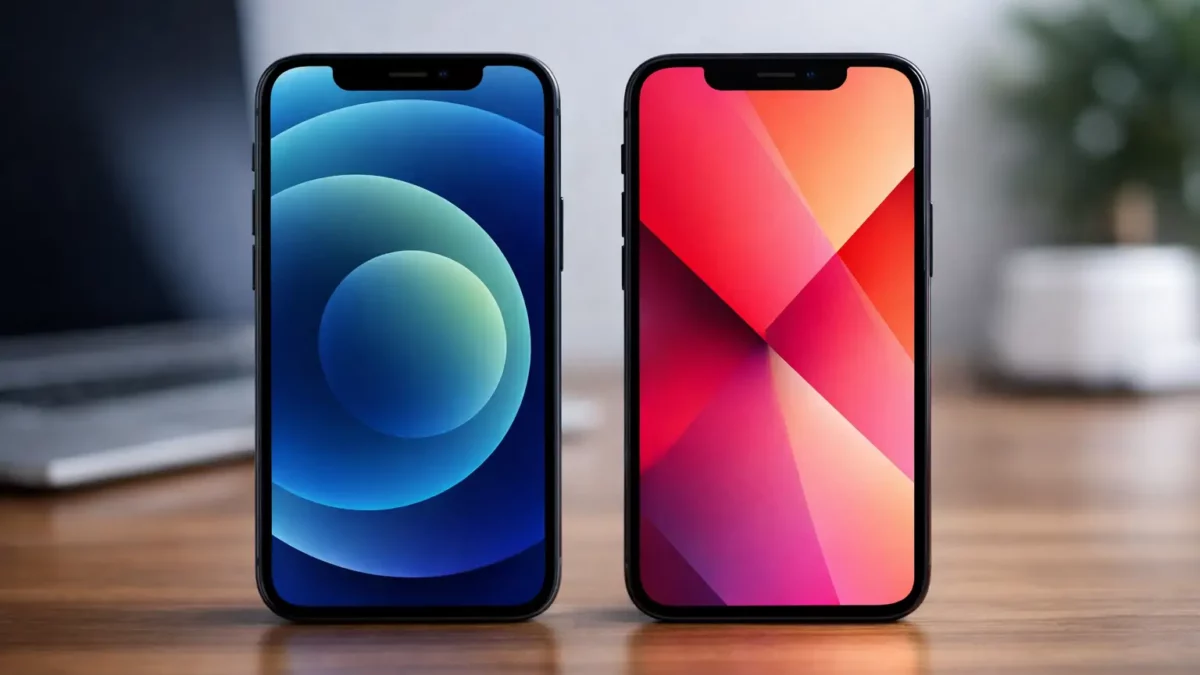

The iPhone 12 vs iPhone 13 screens can look interchangeable at first glance. Both are 6.1-inch OLED assemblies with the same headline resolution, and both sit in handsets of almost identical size. For repair work, however, similar specifications do not make them compatible parts. Ordering by screen size alone is a quick way to create avoidable bench time, return handling and a handset that cannot be completed.
iPhone 12 vs iPhone 13 screens: the core specification
Apple used a 6.1-inch Super Retina XDR OLED display on both models. Each panel has a 2532 x 1170 pixel resolution at 460 pixels per inch, a 19.5:9 aspect ratio and HDR support. On a working handset, text sharpness, image detail and black levels should therefore feel very close.
Neither model has a 90Hz or 120Hz refresh rate. Both operate at 60Hz, so there is no ProMotion advantage when comparing the standard iPhone 12 and standard iPhone 13. A customer upgrading from one to the other may notice subtle changes, but refresh rate is not one of them.
The main on-paper display improvement is brightness. The iPhone 13 is rated for up to 800 nits typical brightness, compared with 625 nits on the iPhone 12. Both can reach 1,200 nits for HDR content. In practical terms, the iPhone 13 is generally easier to read outdoors in strong daylight, while HDR video performance remains broadly comparable.
The iPhone 13 also has a smaller notch. Its front sensor area is shorter and wider than the iPhone 12 notch, changing the upper cut-out and the arrangement around the earpiece and front sensor components. This is one of the visible reasons the two screen assemblies must be treated as separate product families.
Same size does not mean interchangeable
An iPhone 12 display assembly is not a substitute for an iPhone 13 display assembly, and vice versa. The panels have model-specific flex cables, mounting details, upper sensor arrangements and display data requirements. Even where a part appears to sit correctly in the housing, the connector layout and component configuration prevent it being a reliable or correct repair solution.
This distinction matters for trade buyers processing multiple jobs. A booking described only as an “iPhone 6.1 OLED screen” needs confirming before a part is picked. Check the exact model in Settings where the device is operational, or confirm the model number from the handset and job record. Do not identify the handset only from the rear camera layout, as cases, replacement housings and poor-quality reference images can mislead.
The iPhone 12 family also includes the iPhone 12 mini, iPhone 12 Pro and iPhone 12 Pro Max. The iPhone 13 family includes the iPhone 13 mini, iPhone 13 Pro and iPhone 13 Pro Max. These are all distinct screen categories. The iPhone 12 and iPhone 12 Pro share the same 6.1-inch display format, but that does not extend to the iPhone 13. Likewise, an iPhone 13 screen is not suitable for an iPhone 13 Pro, despite matching diagonal size, because the Pro model uses a different display specification and assembly.
Notch and sensor transfer considerations
Screen replacement is not simply a panel swap. The original front sensor and earpiece assembly must be handled carefully, using the correct procedure for the model. Face ID components are paired to the handset, so damage to the original assembly or an incorrect transfer can leave Face ID unavailable after repair.
Before removing a damaged screen, test the replacement assembly where practical. Confirm image output, touch response, brightness control and proximity behaviour before final adhesive fitting. This gives the technician a clear point at which to identify a defective part, a damaged connector or an issue caused by the impact that broke the original display.
True Tone and display-related notifications also need consideration. Depending on the part type, iOS version and repair process used, the handset may show an important display message or lose True Tone unless configuration data is retained or transferred using appropriate equipment. Explain this possibility before authorising the repair, particularly where a customer expects original-device functionality after an aftermarket screen replacement.
Choosing the right replacement screen grade
For iPhone 12 and iPhone 13 repairs, the best replacement option depends on the device value, the fault, the customer’s budget and the intended use of the handset. A refurbisher preparing a premium resale unit may need a different grade from a repair shop completing a cost-sensitive same-day repair.
An original refurbished OLED screen can be a strong choice where original panel characteristics are the priority. These assemblies typically retain the OLED contrast, viewing angles and colour presentation associated with the original device, although their condition, frame quality and refurbishment standard should be assessed according to the supplier’s grading.
Soft OLED replacements are commonly selected as a balance between quality and cost. Their flexible OLED construction is generally closer to the original display design than a rigid alternative, helping with fit, image quality and resistance to minor frame variation. They are often a sensible option for customers who want OLED performance without the price of an original refurbished assembly.
Hard OLED options can suit repairs where pricing is the main driver, but they involve a trade-off. Their rigid construction can make them less forgiving in a handset with a slightly bent frame, and the overall finish or durability may not match a soft OLED or original refurbished panel. They should be fitted only after checking the housing is true and free from impact distortion.
LCD conversion screens are usually the lowest-cost route, but they materially change the handset’s display characteristics. Compared with OLED, LCD generally has weaker blacks, different viewing angles, greater power demand and a different visual finish. An LCD conversion may be appropriate for a low-value handset where the customer has accepted the compromise, but it should not be presented as equivalent to the original OLED screen.
For every grade, assess more than the image at first boot. Test touch across the full panel, check for dead pixels and uneven brightness, verify the ambient light and proximity functions after transfer, and inspect the frame before sealing. A high-quality panel cannot compensate for a distorted housing, damaged display connector or missing perimeter adhesive.
Repair workflow differences that affect part selection
The iPhone 13’s brighter panel can make a direct side-by-side comparison with an iPhone 12 look more dramatic than it is. For a replacement repair, the relevant question is not whether an iPhone 13 screen is brighter than an iPhone 12 screen. It is whether the selected replacement is the correct model, correct grade and correct fit for the customer’s handset.
Frame condition is especially relevant on OLED repairs. If the original display was damaged in a drop, inspect the housing rails, corner alignment and internal mounting points before fitting the new screen. A bent corner may put pressure on a new OLED panel, leading to poor seating, light issues around the edge or repeat failure after the device leaves the shop.
Battery condition can also affect a customer’s view of a replacement screen. OLED brightness and poor battery health are closely linked in day-to-day use. If a customer reports a dim or inconsistent display but the panel tests correctly, check settings, battery health and signs of previous repair before assuming the screen itself is faulty.
For technicians managing stock, separating parts by exact device model is more useful than grouping them by display size. Keep iPhone 12, iPhone 12 Pro, iPhone 13 and iPhone 13 Pro stock clearly labelled, then separate available grades beneath each model. This reduces picking errors and makes it easier to quote accurately at the counter.
Which screen should you order?
Order an iPhone 12 screen only for an iPhone 12 or, where the product specification explicitly confirms it, an iPhone 12 Pro-compatible assembly. Order an iPhone 13 screen only for the standard iPhone 13. Confirm the handset model before opening the repair part, then select the screen grade based on the agreed repair outcome rather than the lowest headline price.
For a busy repair bench, that extra model check takes seconds. It can save a return, protect the original Face ID assembly and ensure the replacement screen performs as the customer expects when the handset is collected.
