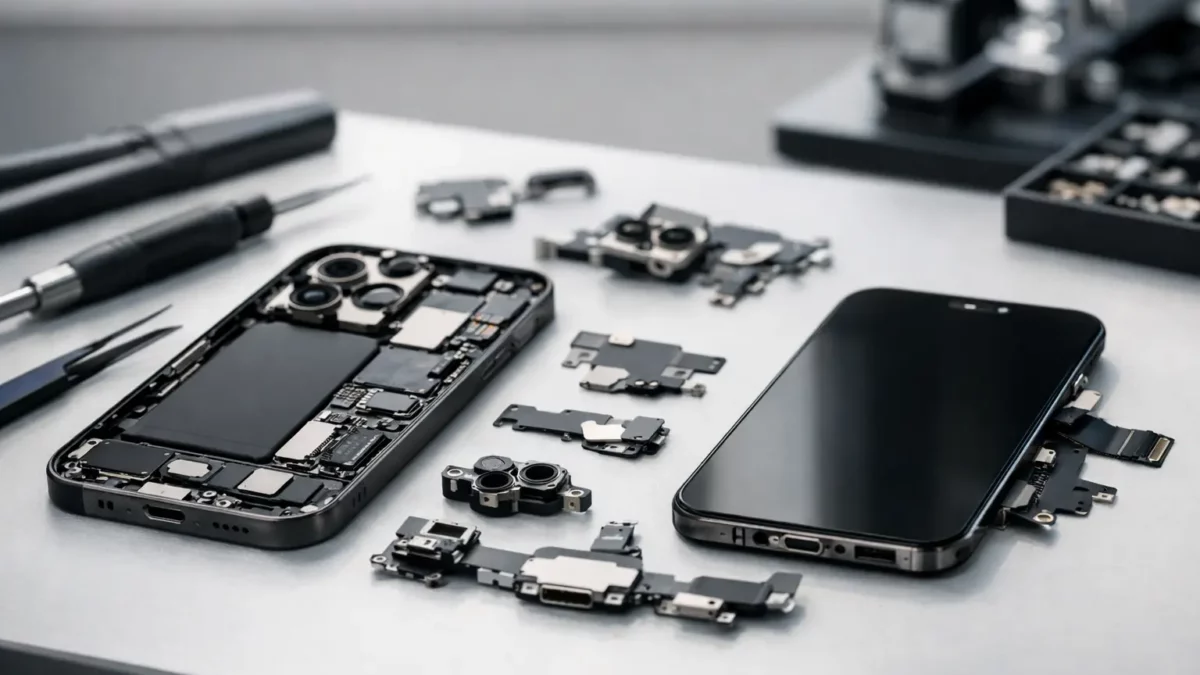

A repair booked in as an iPhone 15 Pro can still go wrong at the ordering stage. Apple released the iPhone 15 Pro alongside the larger iPhone 15 Pro Max, and several assemblies look similar without being interchangeable. This iPhone 15 Pro parts guide is designed to help technicians and experienced DIY buyers identify the damaged component, confirm the handset variant and order parts that suit the repair rather than relying on a visual match.
The iPhone 15 Pro is the 6.1-inch Pro model released in 2023. It has a titanium outer frame, USB-C charging, an Action button in place of the traditional mute switch and a triple rear camera system. Check the model in Settings where the phone is operational, or verify the model number and physical dimensions before stripping down a damaged handset. Do not assume a part labelled for iPhone 15, iPhone 15 Plus or iPhone 15 Pro Max will fit the iPhone 15 Pro.
iPhone 15 Pro parts guide: identify the repair first
Start with the fault, not the part category. A black display can be caused by impact damage, a loose display connector, liquid ingress or board-level damage. A phone that will not charge may need a USB-C charging assembly, but debris in the port, a damaged cable, battery failure or a logic board fault can produce the same customer complaint.
A short pre-repair test reduces returns and protects margin. Check charging behaviour with a known-good USB-C cable and power source, test cameras individually, confirm speaker and microphone functions, and inspect the frame for distortion. If the enclosure is bent, a new screen may not seat correctly and a replacement rear glass may crack under tension.
For trade workflow, record the handset serial or IMEI, original fault and test results before opening the device. This gives the technician a clean baseline and makes it easier to separate a pre-existing issue from a fault introduced during repair.
Screen and display assemblies
The display is normally the first iPhone 15 Pro part requested after an impact. A full screen assembly is the practical option where the OLED panel is cracked, showing lines, has dead touch areas, suffers from display bleed or has a damaged flex. It is also the right route where the glass, panel and touch layer are all compromised.
Part quality matters. An aftermarket OLED assembly may provide a cost-effective repair, while a refurbished original screen can be preferable when original display characteristics are the priority. The best choice depends on the customer budget, intended resale value and the standard your workshop offers. Be clear about the grade and specification being fitted rather than presenting all replacement screens as identical.
Before fitting, inspect the frame lip and remove every fragment of old adhesive and glass. Test the replacement display before final sealing, including touch response, brightness, proximity behaviour and front camera operation. Retain and transfer required small parts with care. The iPhone 15 Pro’s earpiece, sensor and front-camera-related components are delicate, and damage during transfer can create a second repair.
Battery replacement and power faults
Battery replacement is appropriate where battery health has fallen, the handset shuts down unexpectedly, runtime is poor or the cell has swollen. A swollen battery should be dealt with promptly. Do not force the display closed over a raised cell, and do not puncture, bend or heat the battery excessively during removal.
Not every power complaint is a battery fault. Check for high current draw, charge cycling, liquid damage around connectors and signs of a damaged charging assembly. If the phone boots only when connected to power, then turns off under load, a battery may be likely. If it has no response at all and no charging indication, further diagnosis is required before ordering parts.
Use fresh adhesive when installing a battery and route pull tabs as intended. Reusing damaged adhesive can leave the cell moving inside the handset. Once fitted, verify charging, battery percentage behaviour and basic power consumption before returning the device.
USB-C charging port and lower assemblies
The iPhone 15 Pro uses USB-C rather than Lightning, so port condition deserves close attention. A customer may report intermittent charging, a loose connection, no computer recognition, poor microphone performance or unreliable wired accessories. These symptoms can point to the charging port assembly, but compacted pocket debris is a frequent cause.
Inspect the port under magnification before dismantling. If the plug cannot fully insert, clean the port carefully using suitable non-metallic tools. Where pins are damaged, the port has corrosion, or the fault remains after cleaning and testing, replace the correct iPhone 15 Pro charging assembly.
During reassembly, check the lower microphone, antenna contacts, screw positions and cable routing. A missing bracket or incorrect screw can cause poor fitment, grounding faults or damage to the board. This is not a repair to rush because the customer may only discover an issue when using a cable, voice note or wired CarPlay connection later.
Rear cameras, front camera and camera glass
The iPhone 15 Pro has a rear camera cluster with wide, ultra-wide and telephoto functions. Test each lens separately before ordering a camera module. Check focus, image stabilisation, portrait mode, video recording, flash behaviour and lens switching. A blurry image can be caused by a scratched outer camera lens, while shaking or failure to focus is more likely to involve the camera module itself.
Camera glass replacement is a lower-cost repair where only the external lens cover is cracked and the camera still focuses and records cleanly. It requires careful debris control. Glass fragments near the lens can scratch the camera module during removal or remain trapped behind the new cover.
The front camera area should be treated as a precision repair. Face ID-related hardware and sensor components need careful handling and may be paired to the original device. Do not promise that a simple front assembly swap will restore every function. Establish what works before repair, explain any risk where damage is already present and test again once the handset is sealed.
Rear glass, housing and titanium frame repairs
Rear glass damage can be cosmetic, but it can also expose the phone to moisture, dust and further cracking. On the iPhone 15 Pro, the rear glass construction is designed to be more serviceable than earlier generations, yet the repair still requires controlled heat, correct adhesive removal and close inspection of the wireless charging area.
Choose a rear glass repair when the frame, button assemblies and internal components are sound. Choose a complete rear housing when the titanium frame is bent, corners are heavily damaged, button mounts are compromised or multiple external assemblies require replacement. A housing repair is more labour-intensive because major internal components must be transferred. It can, however, provide a cleaner and more reliable result than trying to rebuild a distorted frame.
Check the colour and exact model before ordering a housing or rear glass. Cosmetic consistency matters on a premium handset, particularly for refurbishment and resale work. Confirm whether the supplied part includes small components such as buttons, flexes, lenses or mesh, as contents vary by product specification.
Small parts that can stop a repair
Small assemblies are easy to overlook until the handset is on the test bench. Common requirements include loudspeakers, earpiece speakers, vibration motors, power and volume button flexes, Action button assemblies, SIM tray parts, display adhesive, battery adhesive, brackets and screws. Ordering these at the same time as the main component can prevent a simple job becoming a delayed return visit.
Keep screws organised by location and length. iPhone internals use multiple screw types, and fitting an incorrect screw can damage threads, puncture a layer beneath the board or leave a bracket unsecured. For busy workshops, a labelled screw mat and a pre-close checklist are inexpensive safeguards.
Ordering the correct iPhone 15 Pro part
Accurate sourcing comes down to matching the device, fault and part specification. Confirm that the handset is the 6.1-inch iPhone 15 Pro, inspect whether the repair requires an assembly or a single component, then check what is included with the replacement. Screens may arrive with different pre-fitted flexes or components. Housings may be bare, partially populated or supplied with selected external parts.
For repair businesses, it is worth standardising the grades and specifications offered at the counter. That makes quoting faster, helps staff explain the difference between aftermarket and refurbished options, and creates a more consistent outcome across repeat repairs. iParts4U supports this process with model-specific categories that make it easier to separate closely related Apple components before ordering.
A correct part is only half the job. Test the phone before opening it, test the replacement before sealing it, and test every affected function before handover. That disciplined approach saves more time than any shortcut at the ordering stage.
