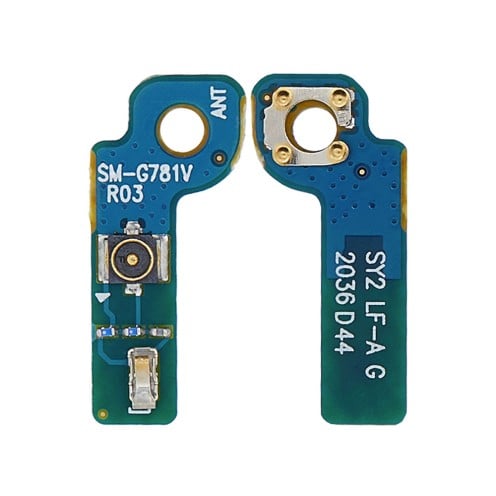

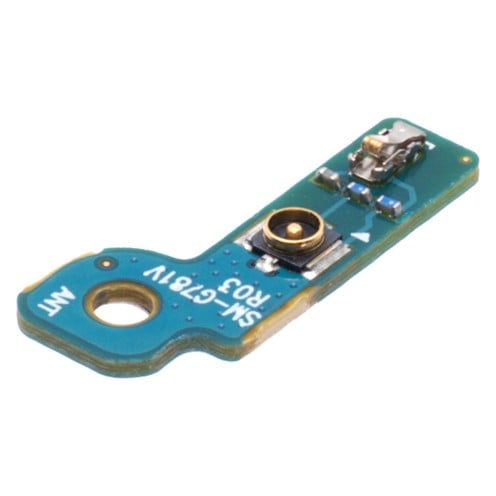

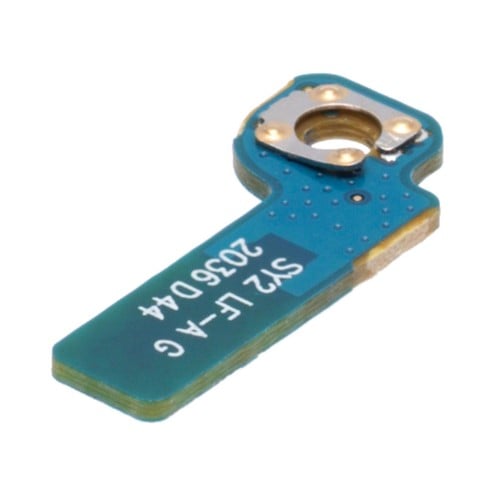

Samsung S20 FE 5G Antenna Board Replacement

Restore signal pick-up and antenna routing on the Samsung Galaxy S20 FE 5G (SM-G781) with this aftermarket Signal Antenna Board. The board is a small PCB that sits inside the chassis and provides the connection point between the device's antenna pick-ups and the mainboard's RF circuitry. When this board fails, the device may show weak signal, missing bands or no signal at all, even if the antenna modules and signal cables themselves are working correctly.

Manufactured to compatible specifications, the board matches the original Samsung dimensions, connector positions and contact pad layout. It is the simplest of the three S20 FE 5G antenna parts to diagnose and replace — a standalone PCB rather than a flex assembly or cable run — making it a fast bench job once the back cover and shielding are removed.

Common Faults Resolved

• Weak or no cellular signal despite the antenna flex and signal cables testing good
• Intermittent loss of cellular reception
• Damaged or corroded contact pads on the original signal antenna board
• Cracked or impact-damaged PCB after a drop
• Liquid or corrosion damage to the original board
• Failed prior repair that affected the signal pick-up path

Key Features

• Single drop-in PCB: standalone board, not a flex or cable assembly — simpler to fit than other antenna parts
• Precision dimensions: matches the original Samsung board layout and connector positions
• Plug-and-play fitment: connects via standard board-to-board contacts, no soldering required
• Cost-effective diagnosis-stage swap: low-cost trial fit to confirm whether the antenna board is the fault point
• Trade-friendly bench part: small physical footprint, easy to stock multiple units

Compatible With

• Samsung Galaxy S20 FE 5G — SM-G781B
• Samsung Galaxy S20 FE 5G — SM-G781B/DS
• Samsung Galaxy S20 FE 5G — SM-G781U
• Samsung Galaxy S20 FE 5G — SM-G781U1
• Samsung Galaxy S20 FE 5G — SM-G781W
• Samsung Galaxy S20 FE 5G — SM-G7810
• Samsung Galaxy S20 FE 5G — SM-G781N
• Samsung Galaxy S20 FE 5G — SM-G781V

Not Compatible With

• Samsung Galaxy S20 FE 4G (SM-G780 — different antenna board layout)
• Samsung Galaxy S20 5G (SM-G981 — different chassis, different board)
• Samsung Galaxy S20+ 5G (SM-G986 — different chassis, different board)

What's Included

• 1 x Aftermarket Samsung Galaxy S20 FE 5G signal antenna board

Important Notes

• Three distinct antenna parts cover the S20 FE 5G signal pathway — order the right one based on diagnosis:
  • Signal Antenna Board (this part): standalone PCB at the antenna pick-up point. Fault when contact pads are damaged or board is cracked.
  • Signal Antenna Connecting Cables (3-piece set): thin coaxial cables routing between antenna pick-ups and the mainboard. Fault when cables are kinked, torn or pinched.
  • 5G Antenna Flex Cable With Module (3-piece set): the actual 5G antenna assembly with integrated signal modules. Fault when 5G specifically has failed.
  Replace based on diagnostic test results — start with the cheapest part (this board) before progressing to larger SKUs if the fault persists.
• Connector seating is critical: the board uses small board-to-board contacts. Mis-seating will produce no signal. Confirm the board clicks fully home before reassembly.
• No soldering required — the board connects via plug-and-play board-to-board contacts.
• Test signal before final reassembly: power the device with the back cover still off and check signal strength on multiple bands before bonding the chassis.
• Inspect for damage before fitment: check the board for shipping damage, cracked traces or bent contact pads before installation.
• Installation should be carried out by a qualified technician using suitable separation and ESD-safe tools to avoid damage to the board, connectors or logic board.

For our complete range of compatible components, visit our Samsung Galaxy S20 FE 5G replacement parts category.

This is an aftermarket component, not a genuine Samsung part. It is manufactured to compatible specifications and is intended for use by qualified repair professionals and trade technicians only.
